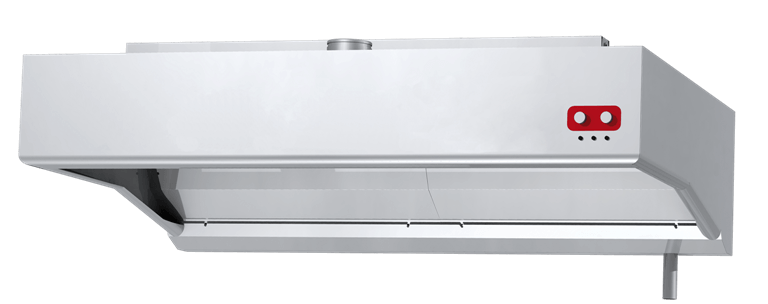

KWH – Galley Water Wash Hood

With Capture Jet technology

General description

Halton KWH is a galley water wash hood for use in marine & offshore applications. The highly efficient KWH hood uses Halton Capture Jet™ technology, which allows the hood to operate with up to 30% lower exhaust airflow rates than traditional hoods. The KWH galley hood automatically washes down the grease filters without the need for removal of the filters from the hood. The washing cycle, operated by a control cabinet CCW-M or WR (see separate brochure), is fully automatic and programmable for use in different operating conditions. The washing process can be manually overridden, when required.

Features
• The design follows USPHS guidelines
• Automatic periodic cleaning of the exhaust plenum and KSA grease filters (and UV tubes when applicable)
• Minimal maintenance requirements, reducing the work load for personnel cleaning the filters
• High level of hygiene facilitated
• Prevention of the build-up of grease deposits, which pose a serious fire hazard
• Halton Capture Jet™ technology, reducing the required exhaust airflow rate and improving the capture and containment efficiencies of the hood, while reducing energy use
• High-efficiency grease filtration using Halton KSA multi-cyclone filters
• Supplied as standard with lighting, balancing dampers for both capture and exhaust air and T.A.B.™ airflow measurement taps, which allow accurate and effective balancing of airflows, and efficient commissioning
• Stainless steel, welded construction
